100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofit existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 350A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator

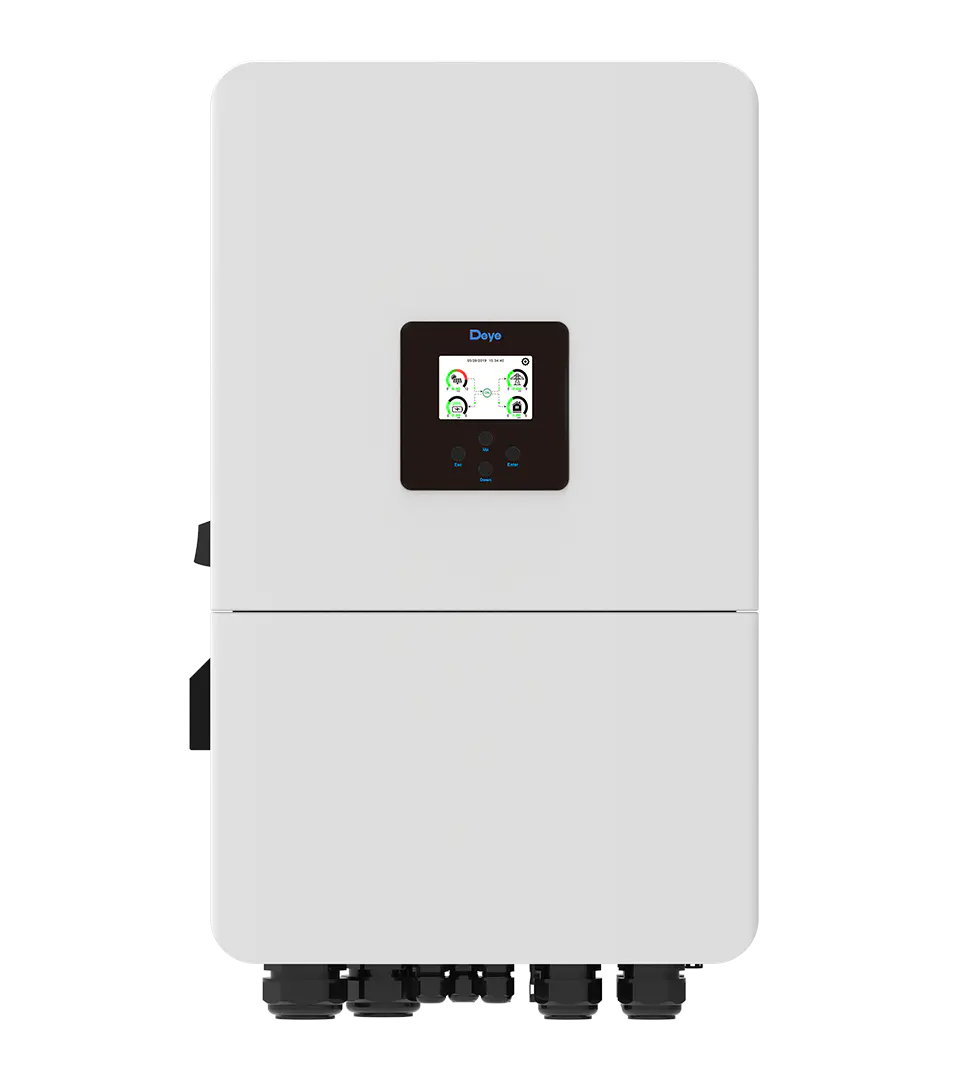

| Model | SUN-14K-SG05LP3 | SUN-15K-SG05LP3 | SUN-16K-SG05LP3 | SUN-18K-SG05LP3 | SUN-20K-SG05LP3 |
|---|---|---|---|---|---|
| EU-SM2 | EU-SM2 | EU-SM2 | EU-SM2 | EU-SM2 | |
| Battery Input Data | |||||
| Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range (V) | 40-60 | ||||
| Max. Charging Current (A) | 260 | 280 | 300 | 330 | 350 |
| Max. Discharging Current (A) | 260 | 280 | 300 | 330 | 350 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||
| Number of Battery Input | 1 | ||||
| PV String Input Data | |||||
| Max. PV Input Power (W) | 28000 | 30000 | 32000 | 36000 | 40000 |
| Max. PV Input Power (W) | 22400 | 24000 | 25600 | 28800 | 32000 |
| Max. PV Input Voltage (V) | 800 | ||||
| Start-up Voltage (V) | 150 | ||||
| MPPT Voltage Range (V) | 180-650 | ||||
| MPPT Voltage Range (V) | 550 | ||||
| Max. Operating PV Input Current (A) | 36+36 | ||||
| Max. Input Short-Circuit Current (A) | 54+54 | ||||
| No. of MPPT Trackers | 2 | ||||
| No. of Strings MPP Tracker | 2+2 | ||||
| AC Input/Output Data | |||||
| Rated AC Output Active Power (W) | 14000 | 15000 | 16000 | 18000 | 20000 |
| Max. AC Output Apparent Power (VA) | 15400 | 16500 | 17600 | 19800 | 22000 |
| Rated AC Input/Output Current (A) | 21.9/30.3 | 22.8/21.8 | 24.3/23.2 | 27.3/26.1 | 30.4/29 |
| Max. AC Input/Output Current (A) | 23.4/22.4 | 25/24 | 26.7/25.6 | 30/28.7 | 33.4/31.9 |
| Max. Continuous AC Passthrough (grid to load) (A) | 70 | ||||
| Peak Power (off grid) (W) | 2 times of rated power, 10s | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
| Rated Input/Output Voltage/Voltage Range | 220/380V, 230/400V; 0.85Un-1.1Un | ||||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | ||||
| Grid Connection Form | 3L+N+PE | ||||
| Total Current Harmonic Distortion THDI | <3% (of Rated Power) | ||||
| DC Injection Current | <0.5% In | ||||
| Efficiency | |||||
| Max. Efficiency | 97.6% | ||||
| Euro Efficiency | 97.0% | ||||
| MPPT Efficiency | 99.9% | ||||
| Equipment Protection | |||||
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, | ||||
| Battery Reverse Polarity Protection, DC Input Overcurrent Protection, AC Output Short-Circuit, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), AC Output Overcurrent and AC Output Short-Circuit and AC Output Overvoltage protection, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level | |||||
| Surge Protection Level | TYPE II(DC), TYPE III(AC) | ||||
| Interface | |||||
| Communication Interface | RS485/RS232/CAN | ||||
| Monitor Mode | GPRS/WIFI/Bluetooth/AG/LAN(Optional) | ||||
| General Data | |||||
| Operating Temperature Range (°C) | -40 to +60°C, >45°C Derating | ||||
| Permissible Relative Humidity | 0-100% | ||||
| Permissible Altitude | 3000m | ||||
| Noise (dB) | <65 | ||||
| Ingress Protection(IP) Rating | IP 65 | ||||
| Installation Type | Non-Isolated | ||||
| Over Voltage Category | OVC II(DC), OVC III(AC) | ||||
| Cabinet Size (W×H×D mm) | 456×750×268.5 (Excluding Connectors and Brackets) | ||||
| Weight (kg) | 50.5 | ||||
| Type of Cooling | Intelligent Air Cooling | ||||
| Warranty | 5 Years/10 Years | ||||
| the Warranty Period Depends the Final Installation Site of Inverter. More Info Please Refer to Warranty Policy | |||||
| Grid Regulation | IEC 61727, IEC 62116, C10/11, EN 50549, VDE-AR-N 4105, VDE-AR-N 4110, G98, G99, VDE-AR-N 4105 | ||||
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
