Volta Cube 140-50

Volta Cube 140-50
Volta Cube 140-50 - Image 2

PRODUCT INFORMATION

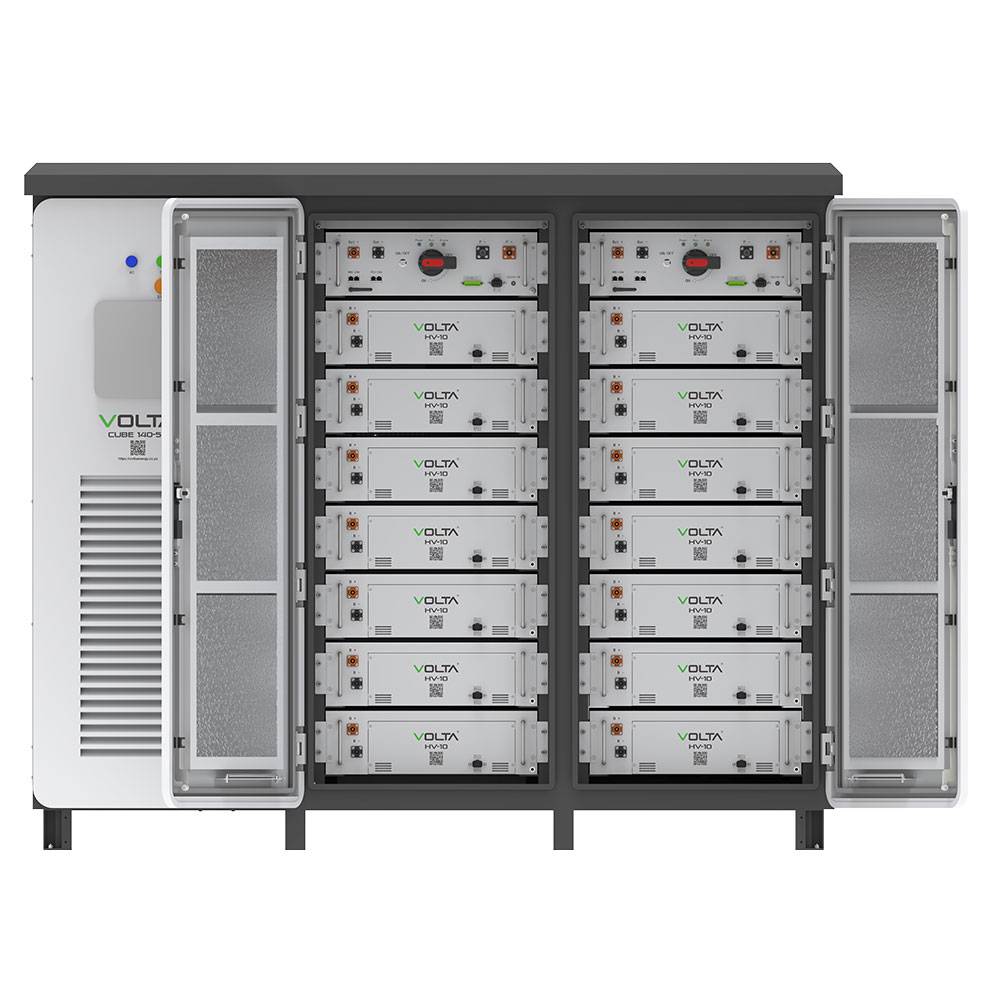

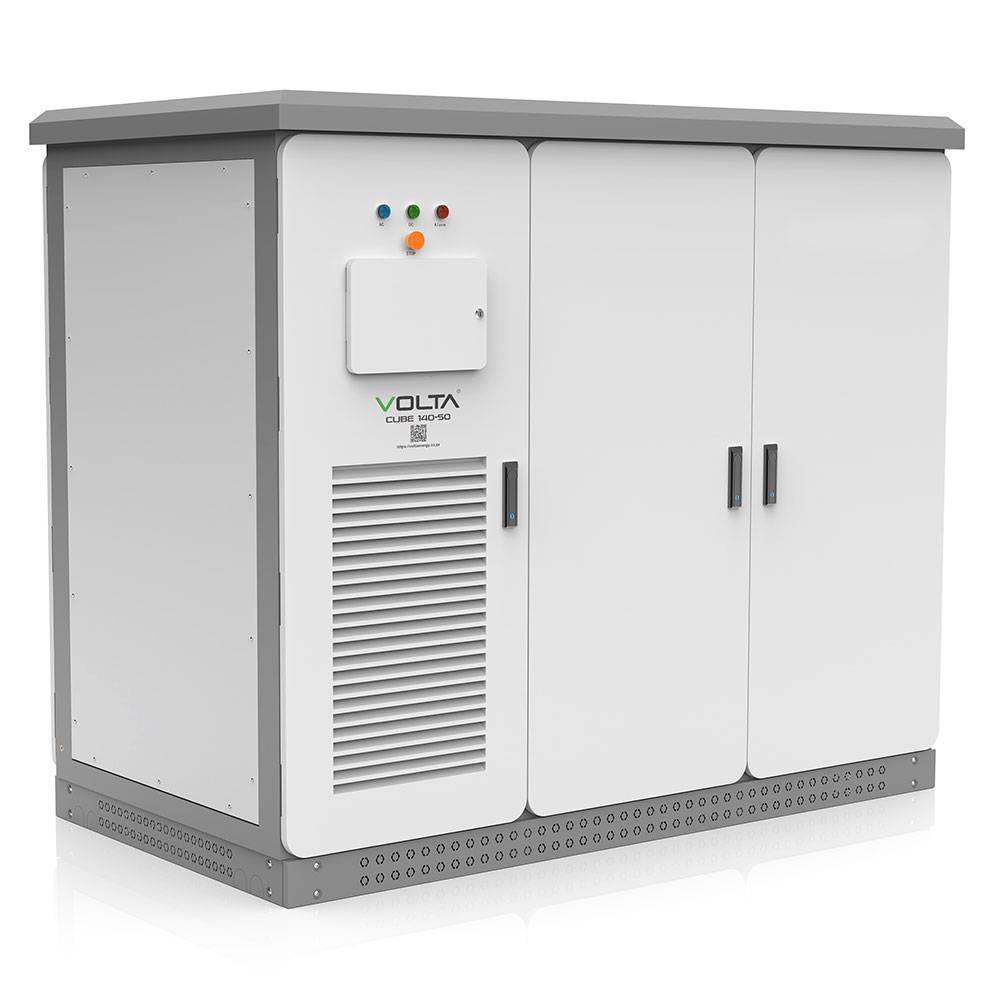

CUBE BOX120/140 features a modular design, combining lithium iron phosphate batteries, racks, BMS, PCS, air-conditioning, temperature control, fire detection, and automatic extinguishing. It boasts safety, reliability, rapid deployment, cost-efficiency, high energy efficiency, and intelligent management.

PRODUCT FEATURES

  • Exquisite craftsmanship Higher specific energy, more environmentally friendly
  • Safe and reliable Longer cycle life
  • Integrated design Convenient installation and higher efficiency
  • Smart and friendly WiFi remote Monitoring (optional)
  • Remote Monitoring Self-developed APP
  • Smart BMS Big Power Smart BMS
  • Full Bracket Design Full space for each cell’s best performance
Model No. CUBE 120-50 CUBE 140-50
Nominal Energy 122.8KWH 143.2KWH
Nominal Voltage 614V 716V
Nominal Capacity 200Ah 200Ah
Cell Type LFP LFP
Standard Charge Voltage 691V 806V
Max Charge Current 200A 200A
Discharge Cut-Off Voltage 537V 627V
Max Discharge Current 200A 200A
Maximum working altitude ≤2000m
Working humidity range 5-85%RH (no condensation)
Cooling method Air-cooled
Cycle Life * 25±2°C/0.2C/80%≥6000
Range of working temperature -10 ~ 60℃
Fire Fighting System Aerosol
Certification Cell:UL1642 / IEC62619 / CE / ROHS / MSDS /UN38.3
Pack: MSDS / UN38.3
Dimensions 2000*1082*1676.5mm
Weight ≈1.2T ≈1.4T
Battery system BMS management system, fire protection system, air-cooled unit, cabinet, PCS system
