WEATHER PROTECTED

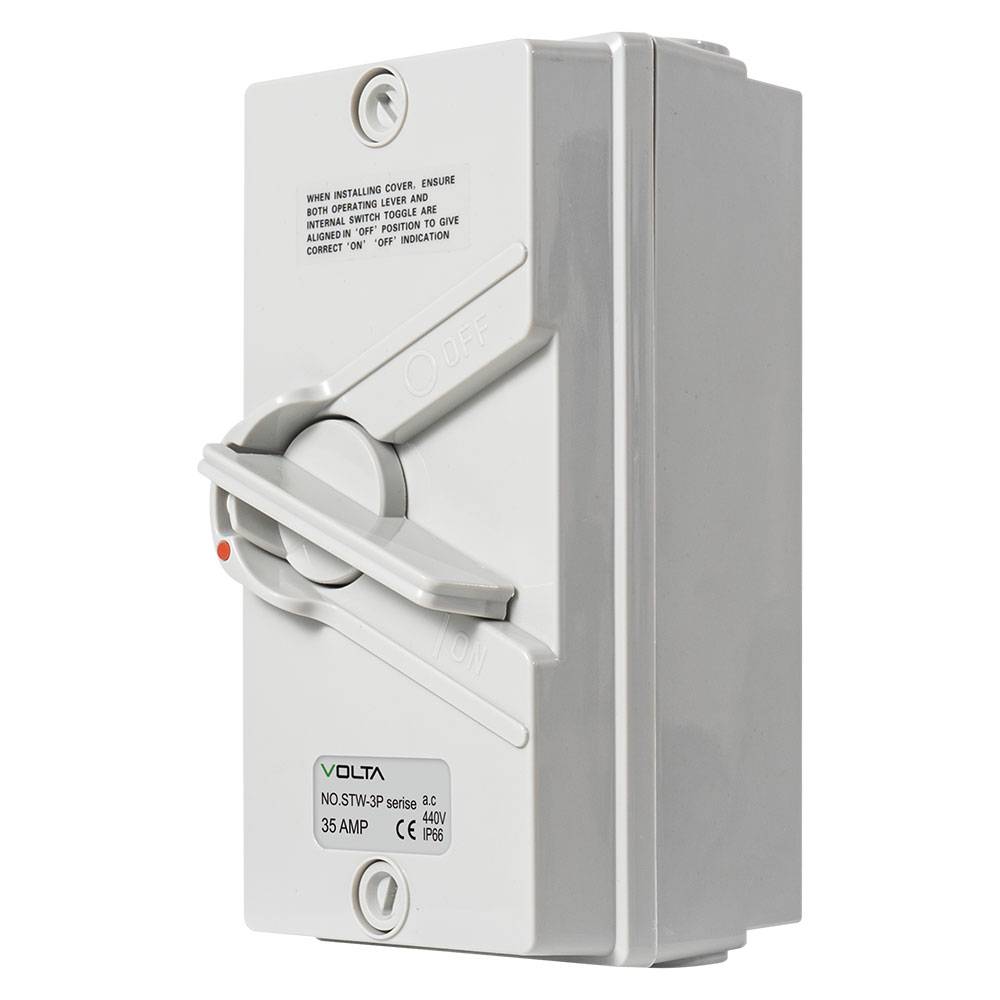

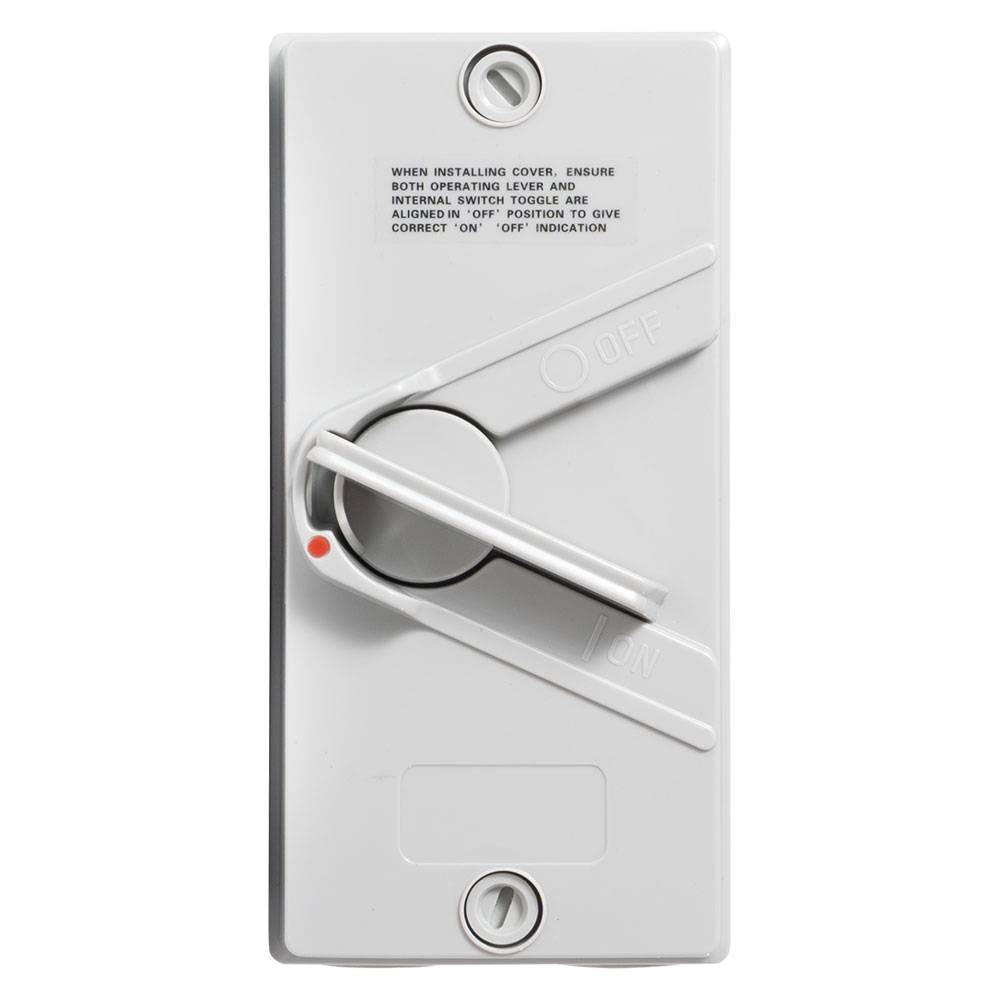

The WP Series of Weather protected Isolating switches is a robust range of switches suitable for virtually any external application. Included in the range are single, double and triple pole switches from 20 to 80 Am-ps. The base mounted mechanism provides for easier termination and more wiring room. Switch dimensions are165mm x 82mm with an overall height of 85mm.
ISOLATING SWITCHES

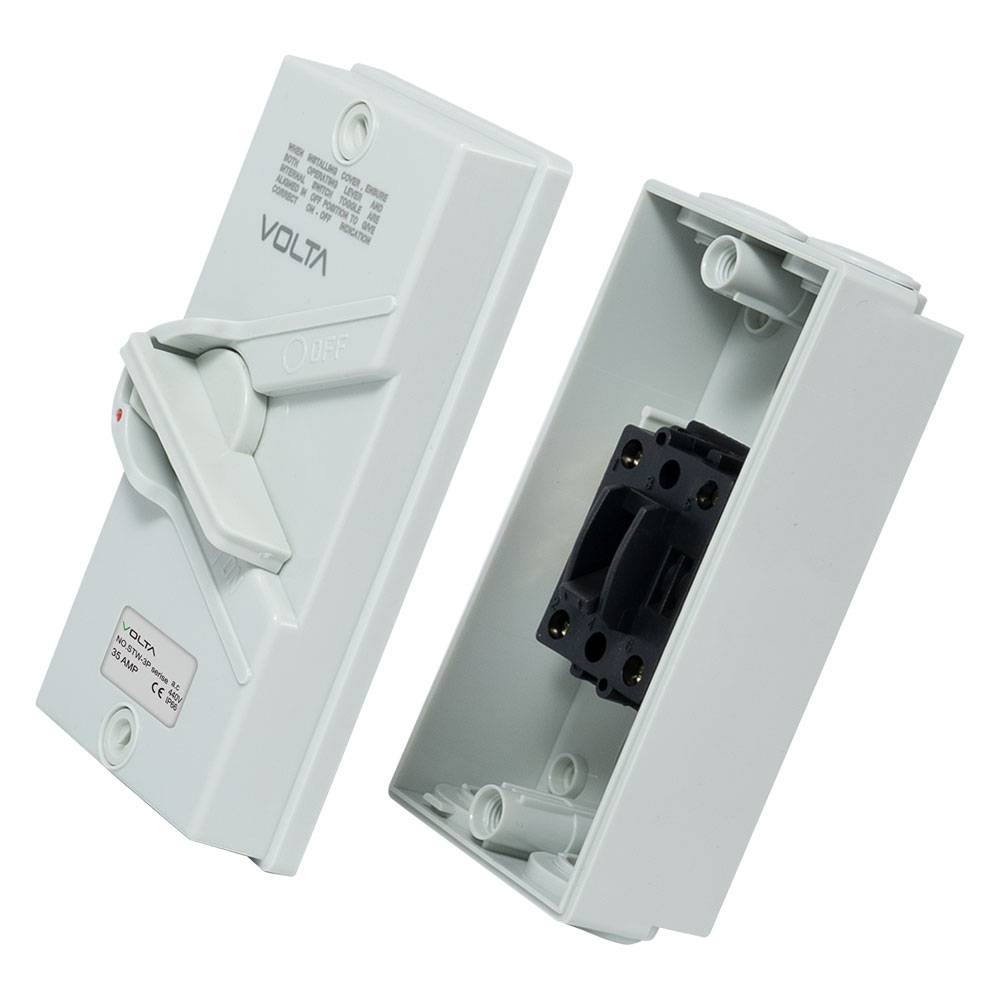

Fixed Earth and Neutral connector bars with dual clamping screws per tunnel provide equal stripping lengths and secure clamping for all cables Terminal bore size 5 x 6.6mm. A safety feature for mounting switches to metal structures is the insulating caps that cover base mounting screws to totally protect them from any live cables.
| Products Available | Phase & Voltage | IP Rating |
|---|---|---|
| STW1-20 | 20A 250V Single pole surface switch. Terminals accommodate 16mm² cable. M Rating220. |
66 |
| STW1-35 | 36A/63A 250V Single pole Terminals accommodate 16mm² cable. M Rating220. |
66 |
| STW1-63 | Single phase 250V conduit Ø25mm |
66 |
| STW1-20A-16 STW1-35A-16 STW1-63A-25 |
Single phase 440V conduit Ø25mm |
66 |
| STW1-20A-16 STW1-35A-16 STW1-63A-25 |
Single phase 440V conduit Ø25mm |
66 |
| STW1-55A-25 STW1-80A-25 |
Single phase 440V conduit Ø25mm |
66 |
| STW2-20 | 20A 440V Double pole Terminals accommodate 16mm² cable. M Rating180. |
66 |
| STW2-35 | 35A 400V Double pole Terminals accommodate 16mm² cable. M Rating180. |
66 |
| STW2-63 | 63A 440V Double pole Terminals accommodate 25mm² cable. M Rating160. |
66 |
| STW3-20 | 20A 440V Double pole Terminals accommodate 16mm² cable. M Rating180. |
66 |
| STW3-35 | 35A 440V Double pole Terminals accommodate 16mm² cable. M Rating180. |
66 |
| STW3-55 | 55A 440V Triple pole with 32mm conduit entry at each end. Terminals accommodate 25mm² cable. M Rating160. |
66 |
| STW3-55-32EC | 63A 440V Triple pole with 32mm conduit entry at each end. Terminals accommodate 25mm² cable. M Rating150. |
66 |
| STW3-63-32EC STW3-80-32EC |
80A 440V Triple pole with 32mm conduit entry at each end. Terminals accommodate 25mm² cable. M Rating150. |
66 |
